Name: Дънна платка, ASROCK B850M STEEL LEGEND WIFI
Brand: ASROCK
SKU: B850M STEEL LEGEND WIFI
Price: 156.77 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

ASROCK

Дънна платка, ASROCK B850M STEEL LEGEND WIFI

Цена

€156⁷⁷ / 306⁶² лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 21€

+2 години: + 30€

Код: B850M STEEL LEGEND WIFI
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.asrock.com/mb/AMD/B850M%20Steel%20Legend%20WiFi/index.asp

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

CPU's supported

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

AMD B850

Expansion slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*

Chipset:

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Memory type

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

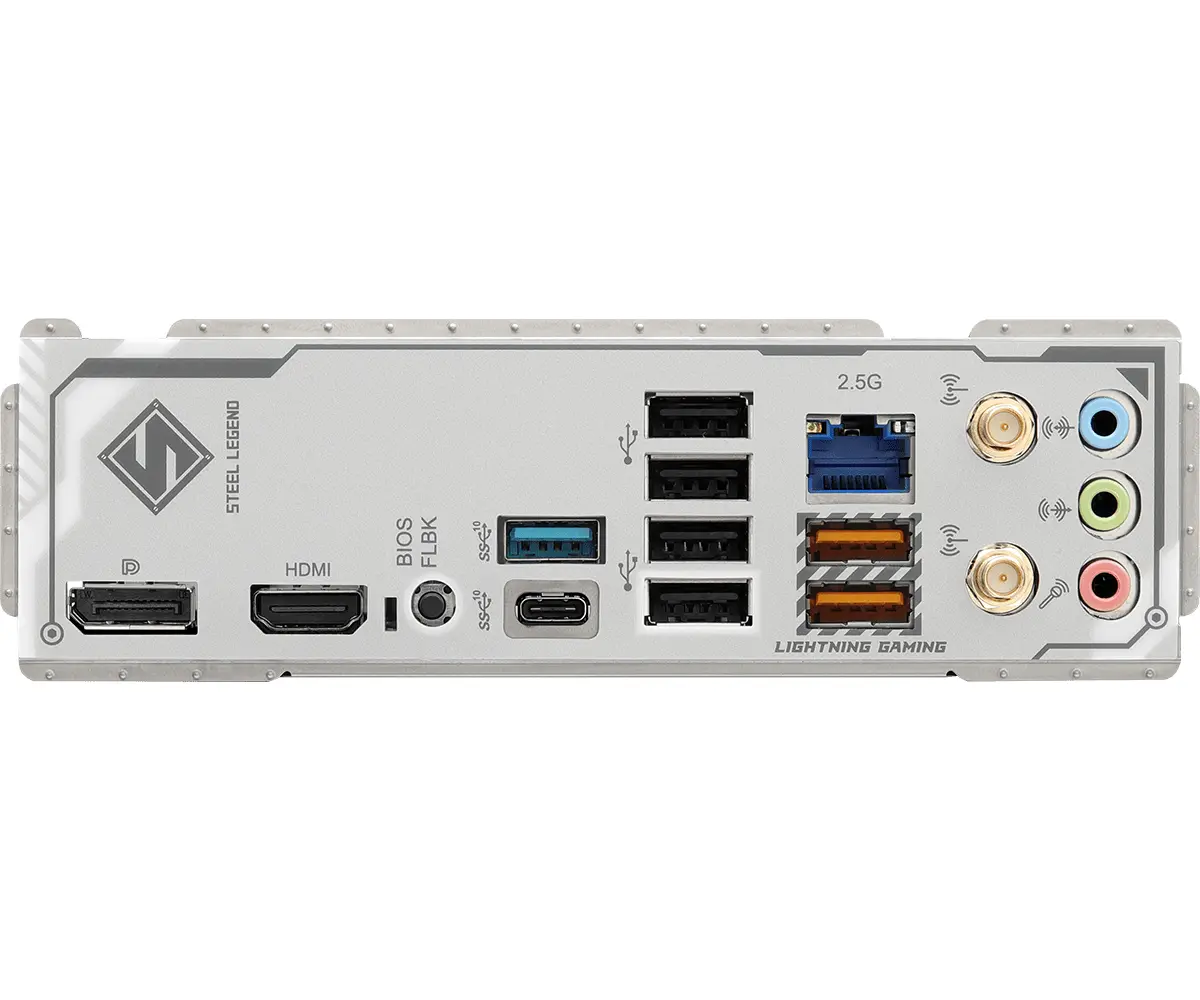

Rear panel I/O

2 x Antenna Ports

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

2 x USB 3.2 Gen1 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

USB

CPU:

- 1 x USB 3.2 Gen2 Type-C (Rear)

- 1 x USB 3.2 Gen2 Type-A (Rear)

- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))

Chipset:

- 1 x USB 3.2 Gen1 Type-C (Front)

- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)

- 8 x USB 2.0 (4 Rear, 4 Front)

Connectors

1 x SPI TPM Header

1 x Thermistor Cable Header

1 x Power LED and Speaker Header

1 x RGB LED Header

3 x Addressable LED Headers

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)

3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen1 Header

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Impedance Sensing on Rear Out port

Individual PCB Layers for R/L Audio Channel

Nahimic Audio

Lan

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Wireless

802.11be 2x2 Wi-Fi 7 Module

Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe/ be

Supports 2.4GHz/ 5GHz/ 6GHz* frequency band

Supports 160MHz channel bandwidth with 6GHz* frequency band

1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.4

Supports MU-MIMO

Bluetooth

5.4

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

2oz Copper PCB

Microsoft Windows® 10 64-bit / 11 64-bit

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Warranty

36 Months

Атрибут	Стойност
Vendor_url	https://www.asrock.com/mb/AMD/B850M%20Steel%20Legend%20WiFi/index.asp
Chipset	AMD B850
OS	Microsoft Windows® 10 64-bit / 11 64-bit
OS	Software
OS	- ASRock Motherboard Utility (A-Tuning)
OS	UEFI
OS	- ASRock Full HD UEFI
OS	- ASRock Auto Driver Installer
OS	- ASRock Instant Flash
OS	- ASRock Dragon 2.5G LAN Software
OS	- ASRock Polychrome SYNC
OS	- ASRock EZ Mode
Warranty	36 Months
CPU's supported	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Memory type	Dual Channel DDR5 Memory Technology
Memory type	4 x DDR5 DIMM Slots
Memory type	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Memory type	Max. capacity of system memory: 256GB
Memory type	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Form Factor	2oz Copper PCB
Audio	Nahimic Audio
Audio	Individual PCB Layers for R/L Audio Channel
Audio	Impedance Sensing on Rear Out port
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Rear panel I/O	1 x HDMI port
Rear panel I/O	4 x USB 2.0 Ports
Rear panel I/O	1 x RJ-45 LAN Port
Rear panel I/O	1 x BIOS Flashback Button
Rear panel I/O	HD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O	2 x Antenna Ports
Rear panel I/O	1 x DisplayPort 1.4
Rear panel I/O	1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
Rear panel I/O	1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
Rear panel I/O	2 x USB 3.2 Gen1 Ports
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN	Dragon RTL8125BG
LAN	Smart Auto Adjust Bandwidth Control
LAN	Visual User Friendly UI
LAN	Visual Network Usage Statistics
LAN	Optimized Default Setting for Game, Browser, and Streaming Modes
LAN	User Customized Priority Control
LAN	Supports Dragon 2.5G LAN Software
Expansion Slots	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Expansion Slots	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Expansion Slots	- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
Wireless	Supports MU-MIMO
Wireless	802.11be 2x2 Wi-Fi 7 Module
Wireless	Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe/ be
Wireless	Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Wireless	Supports 160MHz channel bandwidth with 6GHz* frequency band
Wireless	1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Wireless	Supports Bluetooth 5.4
Graphics	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
Features	Superb Productivity
Features	- Dual Channel DDR5
Features	Rock-Solid Durability
Features	EZ Update
Features	- BIOS Flashback Button
Features	- ASRock Auto Driver Installer
Features	EZ Troubleshooter
Features	Ultrafast Connectivity
Features	- PCIe Gen5 (Graphics, M.2)
Features	- 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
Features	- Flexible Integrated I/O Shield
Features	- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Features	- 2.5G LAN, 802.11be Wi-Fi 7 Module
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
I/O	1 x HDMI Port
I/O	1 x DisplayPort 1.4
I/O	HD Audio Jacks: Line in / Front Speaker / Microphone
I/O	2 x Antenna Ports
I/O	4 x USB 2.0 Ports
I/O	1 x RJ-45 LAN Port
I/O	1 x BIOS Flashback Button
I/O	1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
I/O	1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
I/O	2 x USB 3.2 Gen1 Ports
Storage	- 4 x SATA3 6.0 Gb/s Connectors
Storage	CPU:
Storage	Chipset:
Storage	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Storage	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Storage	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Storage	- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Storage	- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
Bluetooth	5.4
Connectors	1 x SPI TPM Header
Connectors	1 x Power LED and Speaker Header
Connectors	1 x Front Panel Audio Connector
Connectors	1 x RGB LED Header
Connectors	3 x Addressable LED Headers
Connectors	2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors	3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors	1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Connectors	2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Connectors	1 x Front Panel Type C USB 3.2 Gen1 Header
Connectors	1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
Connectors	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
Connectors	1 x Thermistor Cable Header
Connectors	1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
USB	CPU:
USB	Chipset:
USB	- 1 x USB 3.2 Gen1 Type-C (Front)
USB	- 8 x USB 2.0 (4 Rear, 4 Front)
USB	- 1 x USB 3.2 Gen2 Type-C (Rear)
USB	- 1 x USB 3.2 Gen2 Type-A (Rear)
USB	- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))
USB	- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
Тегло	1.48кг

ASRock B850M Steel Legend WiFi – Micro-ATX дънна платка с AMD AM5 сокет

Извлечете максимума от вашия AMD Ryzen 7000/8000/9000 процесор с ASRock B850M Steel Legend WiFi. Базирана на AMD B850 чипсет, тази micro-ATX дънна платка предлага висока производителност, поддръжка на PCIe 5.0 и вграден Wi-Fi 6E за безпроблемна свързаност.

Ключови Предимства

Свързаност от ново поколение – PCIe 5.0 x16 слот и PCIe 5.0 M.2 слот за изключително бърза графика и съхранение.
Надеждна мрежа – Вграден Wi-Fi 6E (802.11ax) и 2.5 GbE LAN осигуряват ниска латентност за игри и стрийминг.
Издръжлив дизайн – Серията Steel Legend включва подсилени PCIe слотове, премиум кондензатори и елегантен сребристо-черен външен вид.

Технически Спецификации

Спецификация	Стойност
Сокет	AM5
Форм фактор	Micro-ATX
Чипсет	AMD B850
Тип памет	DDR5
Слотове за памет	4
Максимална памет	256 GB
M.2 слотове	3
SATA портове	4
PCIe x16 слотове	2
Вграден Wi-Fi	Wi-Fi 6E
Скорост на LAN	2.5 Gbps
USB-C портове	2
RGB подсветка	Да
